Description

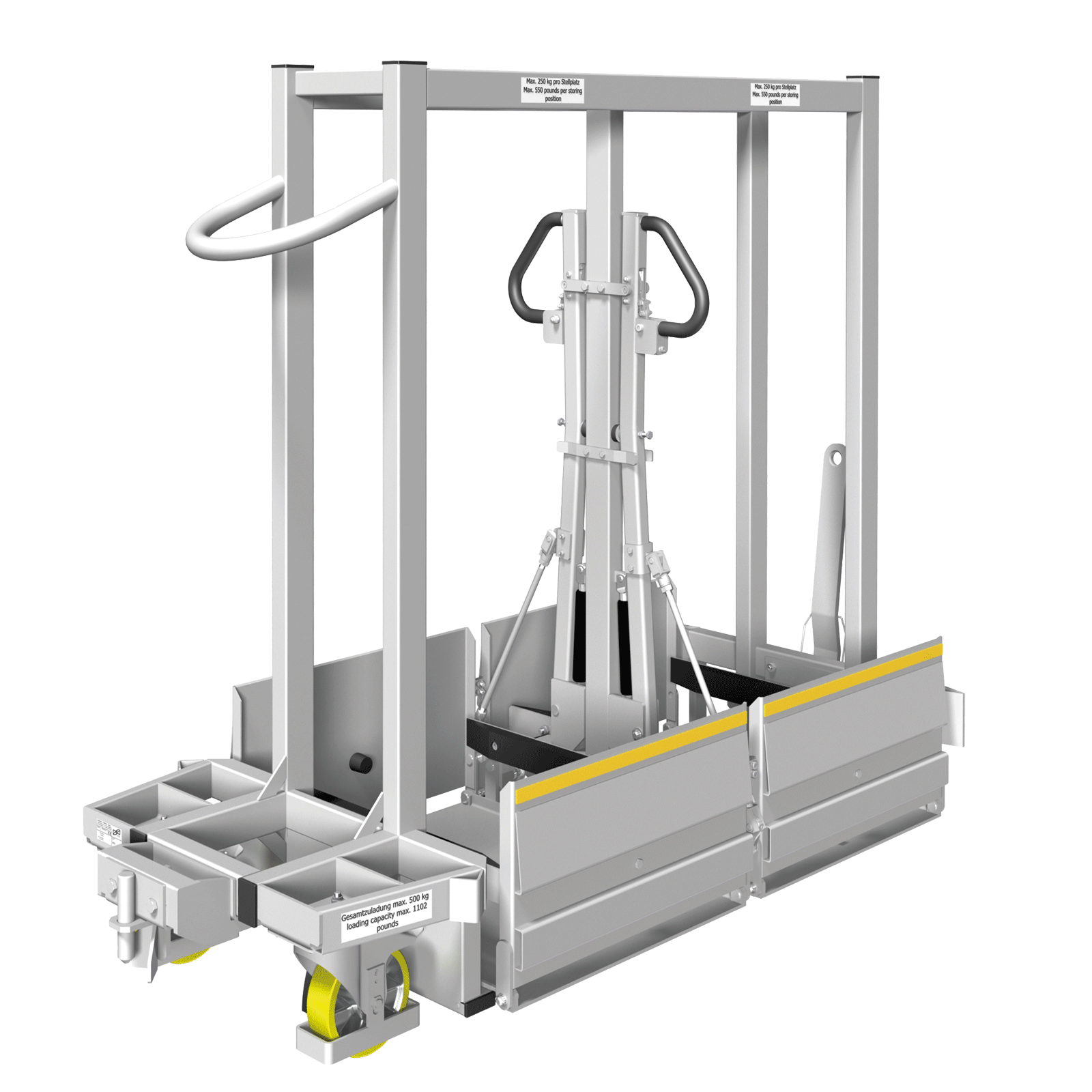

The Cargo-Liner offers a roll-on, roll-off solution to enable you to move a range of different products more easily. The Cargo-Liner is designed so that the load can be removed or loaded individually and from both sides. Thanks to the virtual coupling and drawbar system with excellent tracking stability, combined transport is possible even in the tightest of spaces. These are excellent products to make the ‘non-towable’ – towable
External dimensions (LxWxH): approx. 1780x750x1405 mm
Usable area (LxW)/load capacity:
Parking space 1: approx. 430×638 mm / 250 kg
Parking space 2: approx. 430×638 mm / 250 kg
Clear height of parking spaces: approx. 1300 mm
Ground clearance: approx. 30 mm
Max. total wagon load: 500 kg
Max. train weight: 3000 kg
Max. speed: 6 km/h
Features:
Chassis:
- virtual coupling/drawbar system
Chassis/castors:
- 2 swivel castors with polyurethane tread
- 2 castors with polyurethane tread
- 2 lockable castors
- Swivel castor diameter: 160 mm
- Wheel diameter: 125 mm
- Tread hardness: 92° Shore A
- Fixed castors inside and protected by wheel arches
- Overrun protection on all swivel castors
Accessories:
- with push bar
- ESD-capable via antistatic band 10hoch7 Ohm”
